L-CAT Shore-to-Shore

Stand-alone Force Projection Craft

Amphibious Operations

Naval Operations

Maritime Security

Very shallow water operations

80 t @ 25 knots

42 passengers

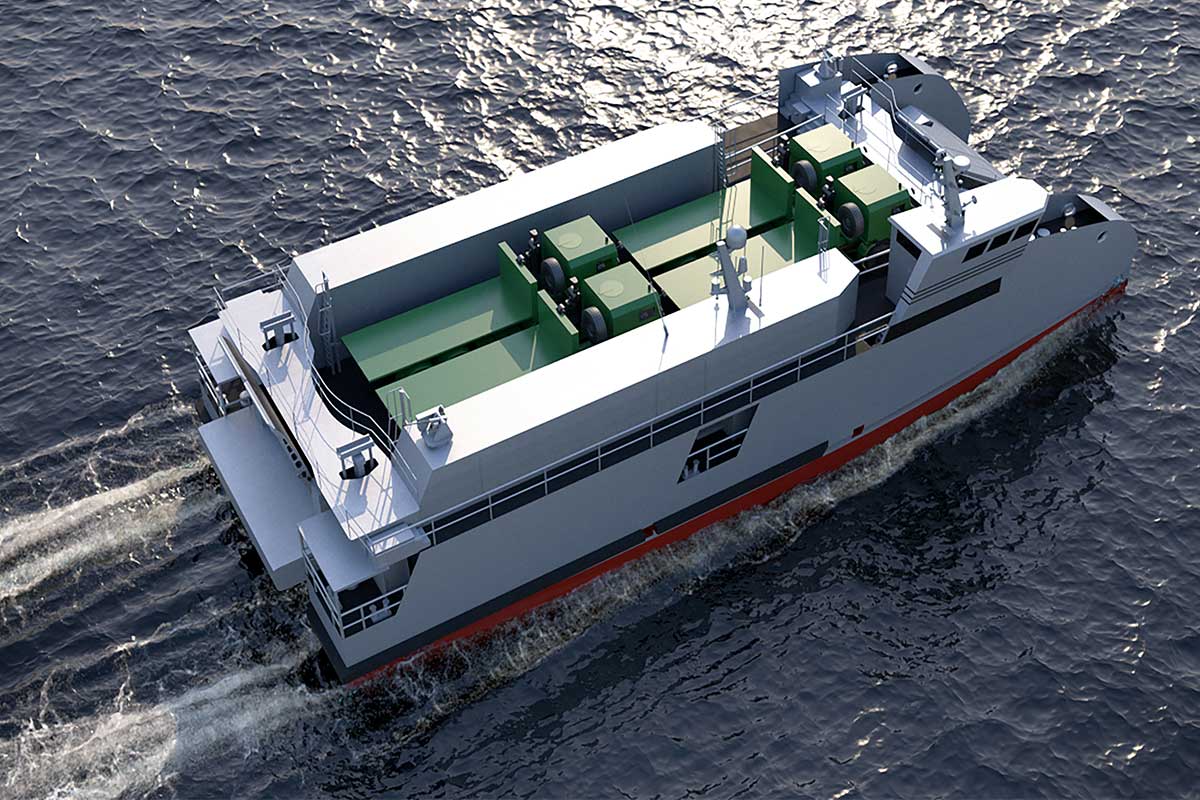

The L-CAT® Shore-to-shore, highly maneuverable, provides exceptional operational flexibility for amphibious assaults and humanitarian operations, without compromising between speed and payload. The design of the L-CAT® Shore-to-shore is based on the L-CAT® Ship-to-Shore.


MAIN CHARACTERISTICS



Length / Width

36 m / 14 m

Draft at full load

1 m

Speed at full load / light ship

25 / 35 kts

Normal / Maximum payload

80 / 100 t

Platform area

145 m²

Range

800 nm

Sea state

6

Weapons

2x20 mm TOP


Going beyond amphibious operations, it responds perfectly to current maritime security needs, as well as to civil assistance requirements, such as the evacuation of civilian populations from disaster stricken areas.
